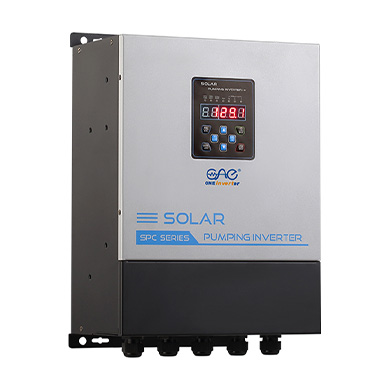

Solar Pump Inverter (SPC)
Wide ragne of PV input. Inbuilt with AC compenstion function, auto balance between solar input and AC input. High efficiency up to 99%.
| L11 (2200W – 5500KW) | |
| AC Input Voltage | 220V (-15%) ~ 240V (+10%) (1PH) |
| Reted Output Voltage | 220V (1PH) |
| Max. DC Input Voltage | 440V |
| Lowest Working Voltage | 150V |
| Recommended DC Input Range | 200V~400V |
| Output Frequency Range | 0~400HZ |
| Mppt Efficiency | 99% |
| Cooling | Fan Cooling |
| H33 (2200W – 37000W) | |
| AC Input Voltage | 380V (-15%) ~ 440V (+10%) (3PH) |
| Reted Output Voltage | 380V (3PH) |
| Max. DC Input Voltage | 800V |
| Lowest Working Voltage | 250V |
| Recommended DC Input Range | 300~750V |
| Output Frequency Range | 0~400HZ |
| Mppt Efficiency | 99% |
| Cooling | Fan Cooling |
